Superior Masonry Greenville builds structural masonry in Greenville, SC, including load bearing CMU walls, demising walls, and shafts. We follow engineered drawings and reinforcement schedules to deliver strong, straight structures that tie into steel and concrete elements. Our team is equipped for fast paced commercial schedules and large wall areas.
Superior Masonry Greenville provides professional structural masonry throughout Greenville, SC, South Carolina and the surrounding area. Our licensed, insured crew delivers safe, clean, on-time work with a free estimate before anything begins. Call (864) 671-2912 or request your free quote.
Structural masonry done right for Greenville properties
Structural masonry is about more than stacking blocks. It is what actually holds up your home, shop, retaining wall, or commercial building. At Superior Masonry Greenville, we focus on structural masonry and block walls that are engineered, built, and reinforced to carry real loads and handle our Upstate South Carolina climate.

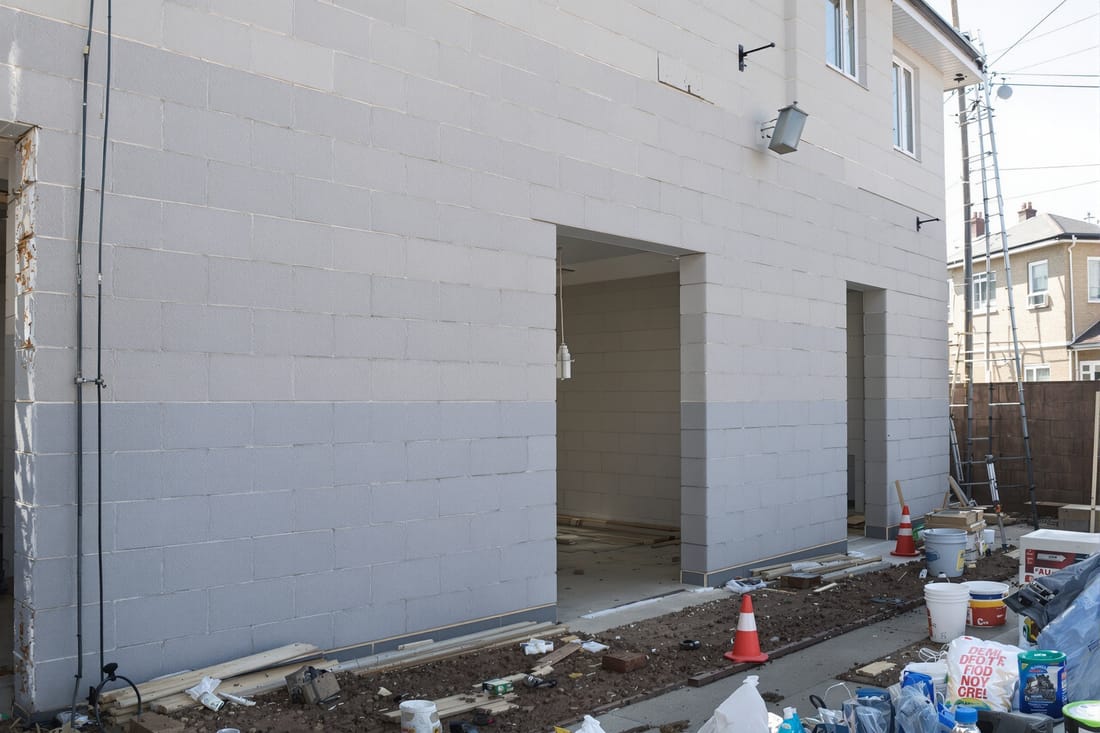

When we talk about structural masonry, we are usually referring to concrete block (CMU) walls that are tied into footings, reinforced with steel rebar, and filled with grout at specific locations. These walls might support floors and roofs, act as shear walls to resist wind, retain soil on a sloped lot, or form the backbone of a new addition. We work closely with local engineers and inspectors in Greenville County so the wall meets both design plans and local code.
Our team is local to the Greenville area, which matters when you are dealing with red clay soils, hillside lots, and sudden rainstorms. Soil conditions, drainage, and freeze-thaw cycles here are different from other parts of the country, so we tailor footing size, drainage details, and reinforcement patterns to what works long-term in Upstate South Carolina.
How we build structural block walls step by step
Every structural masonry and block wall project starts with layout and footing work. We locate the wall based on the plans and string it out so you can see exactly where it will sit. Then we excavate for the footings to the required depth, often below the top layer of red clay into more stable material. We set forms if needed, add compacted gravel for leveling and drainage, and place horizontal rebar based on the engineer’s schedule. After that, we pour concrete footings and allow proper cure time so the wall is not sitting on green or weak concrete.
Once the footing is ready, we start the first course of block. That first row is the most time consuming, because we set each block on a full mortar bed and check level, plumb, and line repeatedly. Any mistake here compounds as the wall rises. After the first course, we lay additional courses in running bond, staggering joints for strength. We leave clean cores where vertical rebar will be placed and where grout will be poured.
Reinforcement is a key difference between a simple partition wall and structural masonry. We typically install vertical rebar dowels epoxied or embedded into the footing, then run continuous bars up through the block cells. Horizontal reinforcement might be ladder wire in the joints or bond beam blocks at the top of the wall. Once rebar is inspected, we grout the reinforced cells with a high slump masonry grout, using mechanical vibration or rodding to eliminate voids.
For exterior or load bearing walls, we also tie the masonry into the rest of the structure. That can include anchor bolts cast into bond beams to connect roof trusses, dowels tying into concrete slabs, or special connectors for floor framing. We finish by striking joints for weather resistance, patching any small chips, and cleaning the face of the block so it is ready for paint, stucco, or veneer.
Design options and materials for block walls
Structural masonry does not have to look plain. Superior Masonry Greenville offers several block and finish options that keep the strength of CMU while giving you the look you want. For many commercial and utility projects around Greenville, standard 8x8x16 gray block is the most cost effective approach. These can be painted or left natural for a basic, durable finish.
For projects where appearance matters more, we can use split face block, scored block, or integrally colored block so the wall has texture and color built in. These are popular on schools, churches, and office buildings in the Upstate because they are low maintenance and still meet structural requirements. We can also build a structural CMU backup wall and then apply brick or stone veneer on the outside, which is common on higher end homes and storefronts along Woodruff Road and in downtown Greenville.
Thickness and density of block are also design choices. A typical load bearing wall might be 8 inches thick, but for taller or heavily loaded walls we may use 10 or 12 inch block. In some cases, especially for fire rated walls between units or in mechanical rooms, we use specific fire rated CMU that meets local building codes. Insulated CMU and interior furring can also be used where energy performance is important.
Drainage and waterproofing details are part of the design as well, especially for retaining walls or below grade structural masonry. We can install waterproof membranes, drainage board, weep holes, and perforated drain pipe behind the wall so hydrostatic pressure does not build up. These details are important in Greenville where heavy summer storms can dump a lot of water in a short time on sloped lots.
What affects cost and timeline for structural masonry
Most property owners want to know what really drives the cost of structural masonry and block walls. At Superior Masonry Greenville, we walk you through the main factors upfront so there are fewer surprises. The first driver is wall size, both length and height. A taller wall or one that runs a long property line simply uses more block, mortar, grout, and labor.
The second driver is structural complexity. Retaining walls that are holding back several feet of soil, or walls that are part of multi story buildings, need more reinforcement, thicker block, and more grout. That increases material and labor costs, but it is critical to long term performance. Site conditions also affect cost. Rocky ground, poor access for a mixer or forklift, or the need for hand digging around utilities can increase labor time.
Permitting and engineering are another consideration. In Greenville County and the surrounding municipalities, many structural masonry walls, especially retaining walls over a certain height, require engineered drawings and permits. We coordinate with licensed structural engineers, submit drawings and details, and schedule inspections at footing, rebar, and final stages as needed. This process adds some time to the schedule, but it protects you and your investment.
Finish choices can also affect pricing. Decorative block, brick or stone veneer, waterproofing systems, and integrated fencing or railing on top of a retaining wall all have separate costs. During our site visit, we outline basic options and then give you written pricing for each so you can decide what fits your budget and goals.
Common issues we solve and what to check before you hire
Because we work across Greenville and the surrounding Upstate, we see a lot of the same structural masonry problems repeated. Common issues include cracked or bowing retaining walls that were built without proper footings or drainage, CMU walls with missing vertical rebar or ungrouted cells, and additions where the block foundation was never tied correctly into the existing structure. We are often called in to repair, reinforce, or rebuild these walls.
For failing retaining walls, we might demo the old structure, reexcavate to proper depth, and rebuild with correct footing size, rebar, geogrid (if specified), and a complete drain system behind the wall. For settlement cracks in structural CMU walls, we investigate the footing, soil conditions, and water management around the building before recommending partial rebuilds, stitching with reinforcement, or underpinning by others. The key is to address the cause, not just patch the surface.
Before you hire any masonry contractor for structural work in Greenville, ask to see example projects that involved permits and inspections, not just decorative patios. Ask if they follow engineer specifications on bar spacing, grout lift heights, and inspection points. Make sure they understand local codes and can explain how they handle footing depth, drainage, and reinforcement for your type of project.
Superior Masonry Greenville provides detailed written scopes for structural masonry and block wall jobs, not just a lump sum number. Our proposals spell out block size and type, footing dimensions, rebar sizes and spacing based on engineer plans, grout requirements, and any waterproofing or veneer. That way you can compare our plan to what others are offering and feel confident that the wall supporting your property is built to last.
